test piece

for testing on horizontally moving gates

according to DIN EN 12453:2017

EN 12453 has been revised to detect the person - who is in the most awkward place of the sliding gate - before he gets to dangerous places.

The highly durable and water-resistant 120 mm x 120 mm x 500 mm C-test piece can be used to test the possibility of entrainment and possible crushing and shearing on the fixed parts of the gate or building in horizontally moving gates according to EN 12453:2017.

For testing, the test piece is attached to the moving gate leaf in the most unfavorable position and detected by the control system before reaching the danger point by safety devices such as safety contact strips or overload detection.

Otherwise, the guide gantry and the safety contact strips must be set closer together or the safety contact strips must be positioned closer to the gate wing to enable detection of the test piece. In addition, the distances between the filling bars must not be greater than 120 mm.

Sketch for the positioning and detection of the C-test piece

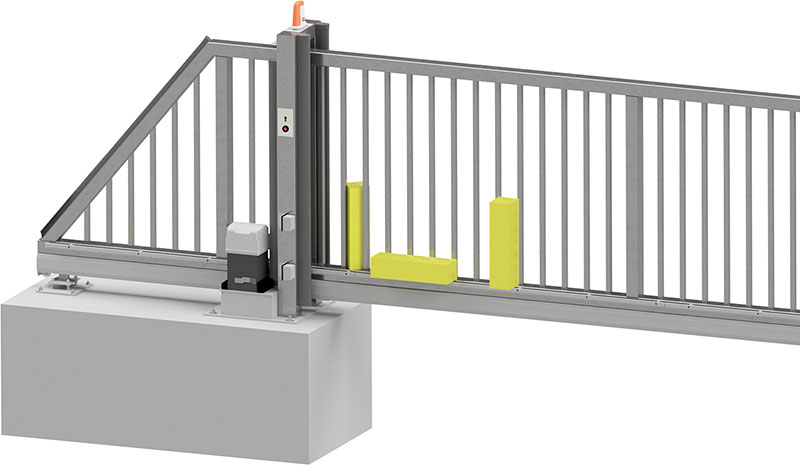

Example of the positioning of the C-test piece

Example of the detection of the C-test piece

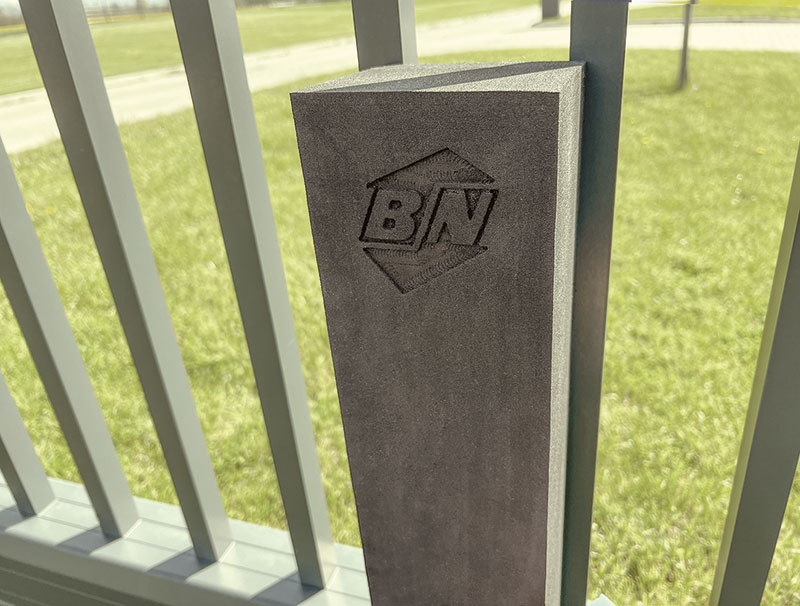

The detection of the test piece 120 x 120 x 500 mm

Advantages and costs

Advantages of the test piece

- Durable and lightweight foam design
- Suitable for outdoor use
- Durable and sustainable
- Leaves no marks on gates

What is the cost of a test piece for testing on horizontally moving gates?

Designation	C-test piece
Item number	1007269
Dimensions in mm
Color	anthracite
Foam type	XPE-RG45
Price	89,00€

plus VAT, plus shipping. Members of BVT - Verband Tore receive a discount of 15% on the net amount.

From an order quantity of 10 pieces, you can have the test piece individually engraved for you with your logo for an additional charge.
